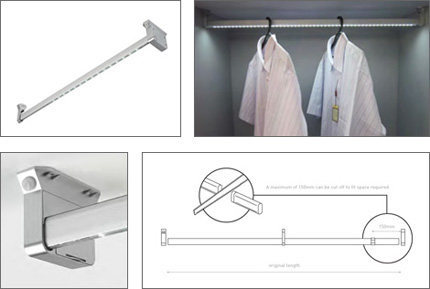

| Battery Powered Illuminated Hanging Rail - integral sensor detects movement & switches light on for 40 seconds, 2 x PP3 9v batteries included. Battery & sensor end bracket 100 x 77 x 32mm. Length of rail may be reduced by 150mm to cut to length. |
 |
|
558mm neutral white
for 450, 500 & 550mm units
(adjusts from 408 to 558mm)
708mm neutral white
for 600, 650 & 700mm units
(adjusts from 558 to 708mm)
858mm neutral white
for 750, 800 & 850mm units
(adjusts from 708 to 858mm)
1008mm neutral white
for 900, 950 & 1000mm units
(adjusts from 858 to 1008mm) |

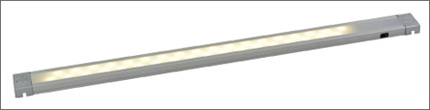

| LED Cabinet Light with Door Sensor |
 |
|
12v 2.5w 110 lumen, 30LED with
door sensor, 190 x 66 x 7mm,
satin silver, neutral white |
| LED Drawer / Cabinet Lights with Door Sensor |
562mm 12v 5.8w 200lumen, aluminium body
762mm 12v 7.9w 280lumen, aluminium body
862mm 12v 8.8w 310lumen, aluminium body |

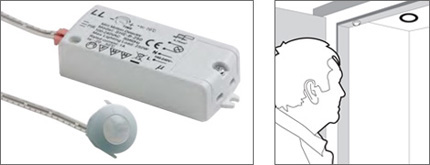

| 240v Timed Mini Motion Detector - activated by body movement |
 |
|
Recessed round ‘eye’ type,
up to 2.5m detection range,
250w switching capacity, adjustable on time
10 seconds to 3 minutes.
White sensor, 240v input
& output leads required
For switching low voltage or
LED, place on 240v input side
of transformer / driver |

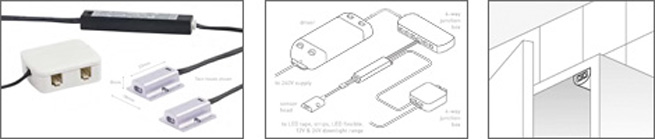

12v / 24v Infra Red Door Switches for LED - plug into LED driver
Wardrobe & Drawer - Open the door, the lamps turn on. Close the door, the lamps turn off.
12v / 24v Infra Red Door Switches for LED - plug into LED driver
Surface mounting, 23 x 18 x 8mm sensor, silver finish – JB plug to switch unit: 300mm, switch unit to sensor: 2.0m, switch unit to 6way JB socket: 360mm, max. switching capacity 12v: 24w, 24v: 48w |
Single head for single door units
Twin head for double door units
Note: for linking to any 12 or 24v LED light with JB plug, max. switching capacity 12v: 24w, 24v: 48w |
| LED Bedhead Lights –flexible goose neck - 1.5m lead, TOP plug |
 |
|
 |
|
Switch on/off 12v 1.0w LED,
satin silver, 400mm flexi neck, plug cool white |
| Touch on/off, 12v 1.45w, 19LED, LH / RH bracket, 300mm flexi neck, satin silver, cool white |

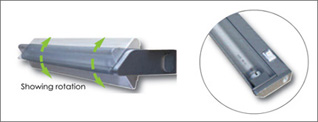

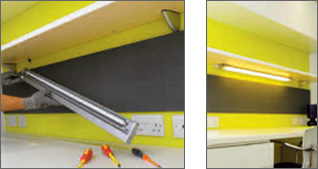

T5 Swivel Triphosphor Fluorescent Fittings – Flicker free quick start, swivel range: 45 degrees, wall or shelf
mounting, white 3400K tube, 2m power lead, prismatic diffuser. Width: 76mm, height 27mm, silver finish |
 |
|
Watts
8
14
18
21 |
Length mm
361
622
658
920 |
Description
T5 fitting
T5 fitting
T5 fitting
T5 fitting |
|
 |
|
T5 Accessories – for swivel fittings
Link lead 250mm
Link lead 500mm
Link lead 1000mm
Rewirable female plug connector |
|

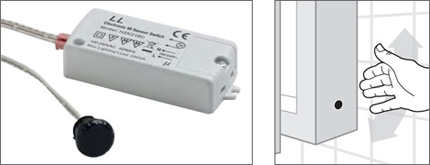

| 240v Recessed Round Infra Red on / off Switch |
 |
|
Activated by nearby hand movement, effective detection range: up to 50mm, 250w switching capacity, lead to sensor 1970mm, sensor dia 17mm, body dia 13mm, depth 12mm |
Black sensor, 240v input & output leads required.
Not: For switching low voltage or LED, place on 240v input side of transformer / driver |
| 12V LED Drivers - DC driver with auto reset, integrated electronic short circuit & overload protection |
 |
|
12v 6w driver, 4 way JB socket
12v 15w driver, 6 way JB socket
12v 30w driver, 6 way JB socket
12v 50w driver, 6 way JB socket |
|
|
|
|
|
