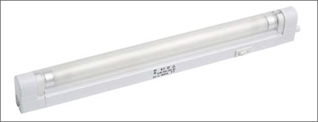

T5 Triphosphor Fluorescent Fittings - T5 (tube diameter 5/8 inch) white (colour 535) tube, 2m power / link lead, diffuser, male to female straight connector, fixing brackets, screws & covers, 44mm high, 24mm wide.

Watts 6 8 13 14 21 28

Length mm 267 343 571 604 904 1204

Description T5 fitting T5 fitting T5 fitting T5 fitting T5 fitting T5 fitting

T5 Accessories

Link lead 250mm Link lead 500mm Link lead 1000mm

Rewirable male plug connector Rewirable female plug connector Right angle corner connector

Swivel range: 45 degrees, wall or shelf mounting, 3400K white tube, 2m power lead, prismatic diffuser, silver finish. 76mm, height 27mm

Watts 8 14 18 21

Length mm 361 622 658 920

Description T5 fitting T5 fitting T5 fitting T5 fitting

T5 Accessories – for swivel fittings Link lead 250mm Link lead 500mm Link lead 1000mm Rewirable female plug connector

T4 Triphosphor Fluorescent Fittings - tube (dia 4/8 inch), 2m power lead, fixing brackets & screws. 20mm wide x 42mm high.

Watts 6 10 16 20 30

Length mm 267 396 524 624 808

Description T4 fitting T4 fitting T4 fitting T4 fitting T4 fitting

Prismatic diffuser for 6w fitting Prismatic diffuser for 10w fitting Prismatic diffuser for 16w fitting Prismatic diffuser for 20w fitting Prismatic diffuser for 30w fitting

Rewirable male plug connector Rewirable female plug connector Right angle corner connector

Rewirable plug (for T4 lead/fitting) Rewirable socket (for T4 lead/fitting)

T4 Fluorescent Tubes - diameter 4/8 inch, may vary in length by 1mm

Note: Although T4 tubes may be the only diameter tube where manufacturers have their own unique length and wattage, and spare tubes are not available in major lamp brands, they do have a higher wattage in proportion to their length than T5 and the fittings are generally lower priced.

Watts 6 10 16 20 30

Length mm 219 [excl pins] 340 [excl pins] 469 [excl pins] 567 [excl pins] 751 [excl pins]

Description T4 tube, 3400K T4 tube, 3400K T4 tube, 3400K T4 tube, 3400K T4 tube, 3400K
