Anti-Dotting Dual Purpose Recessed Narrow Wing 15.8mm wide, 16.1mm high – high strength diffuser spreads the dotting effect of LEDs & also enables the profile to be used in floors. PHFANAL1 2.0m anodised aluminium PHFANAL2 2.0m anodised aluminium

PFPDIFW1 - 1.0m Push-in diffuser, opal white PFPDIFW2 - 2.0m Push-in diffuser, opal white PFLEC - Pair of screw-on end caps, grey

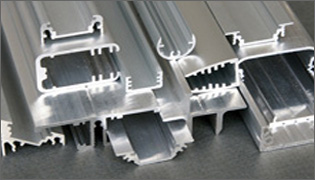

Aluminium Profiles for LED Strip Please Note: all diffusers to be ordered separately

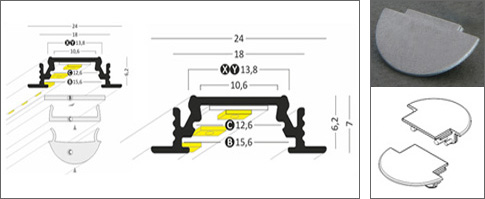

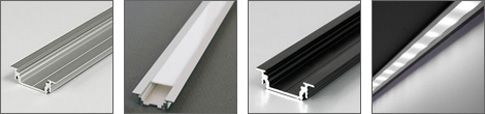

Recessed – Standard - 24 x 7mm, Rebate cut-out 18 x 6mm (7mm if using brackets)

		PRSANAL1 - 1.0m anodised aluminium PRSANAL2 - 2.0m anodised aluminium PRSANBL1 - 1.0m aluminium, anodised black PRSANBL2 - 2.0m aluminium, anodised black PRSANWH1 - 1.0m aluminium, painted white PRSANWH2 - 2.0m aluminium, painted white PRSANALE Pair of end caps PRSANBLE Pair of end caps, black PRSANWHE Pair of end caps, white

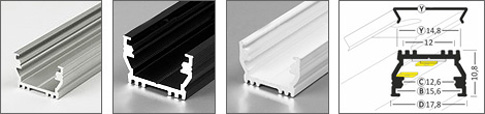

Recessed Narrow Wing - 17.8 x 10.8mm

PRNANAL1 - 1.0m anodised aluminium PRNANAL2 - 2.0m anodised aluminium PRNANBL1 - 1.0m black anodised aluminium PRNANBL2 - 2.0m black anodised aluminium PRNALWH1 - 1.0m aluminium, white painted PRNALWH2 - 2.0m aluminium, white painted

PRNANALE Pair of end caps PRNANBLE Pair of end caps, black PRNANWLE Pair of end caps, white

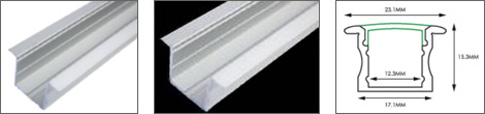

Recessed Medium - 23.1 x 15.3mm

1.0m anodised aluminium 2.0m anodised aluminium 1.0m push in diffuser, opaque 2.0m push in diffuser, opaque

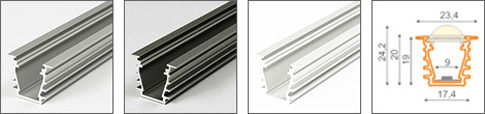

Recessed – Deep - 23.4 x 19.1mm, special effect of light line without hot spot effect can be achieved by using white cover.

PRDANAL1 - 1.0m anodised aluminium PRDANAL2 - 2.0m anodised aluminium PRDANBL1 - 1.0m aluminium, anodised black PRDANBL2 - 2.0m aluminium, anodised black PRDANWH1 - 1.0m aluminium, painted white PRDANWH2 - 2.0m aluminium, painted white

PRNANALE Pair of end caps PRNANBLE Pair of end caps, black PRNANWLE Pair of end caps, white

Diffuser Covers for all above (except recessed medium)

1.0m Slide-in diffuser PSIDIFW1 - white PSIDIFF1 - frosted PSIDIFT1 - transparent 2.0m Slide-in diffuser PSIDIFW2 - white PSIDIFF2 - frosted PSIDIFF2 - transparent

1.0m Push-in diffuser PPIDIFW1 - opal white PPIDIFT1 - transparent 2.0m Push-in diffuser PPIDIFW2 - opal white PPIDIFT2 - transparent

PPLDIFT1 - 1.0m Push-in lens diffuser, transparent PPLDIFT2 - 2.0m Push-in lens diffuser, transparent

Brackets for all above (except recessed medium)

PSALBKTS Pair of aluminium brackets & screws for aluminium profiles

PSALFBKT Pair of flexible brackets & screws for aluminium profiles

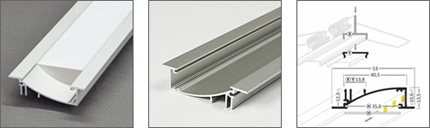

Recessed - 53 x 135mm, wall or ceiling mounting

1.0m anodised aluminium 2.0m anodised aluminium 1.0m aluminium, painted white 2.0m aluminium, painted white

1.0m Slide-in diffuser, white or transparent 2.0m Slide-in diffuser, white or transparent

Pair of end caps Pair of end caps, white

Spring clip for board mounting
